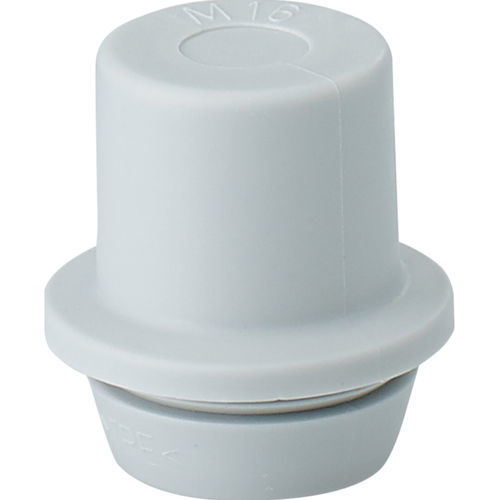

Wire cable grommet ESM 16silicone-free
Add to favorites
Compare this product
Characteristics
- Material
- wire, silicone-free
- Diameter
16.5 mm
(0.65 in)
Description
Grommets
For knockouts M16
IP degree of protection:
IP55
Suitable for wall thickness:
1.5 mm - 3.5 mm
Application area:
Indoor installation
Maximum ambient temperature 24 h:
35 °C
Ambient temperature:
-25 °C up to +35 °C
Relative humidity:
≤ 50 % at 40 °C, ≤ 100 % at 25 °C
Material:
TPE
Glow wire test according to IEC 60695-2-11:
750 °C
Temperature resistance:
-25 °C up to +100 °C
Halogen-free:
Yes
Silicone-free:
Yes
Maximum diameter of the bore-hole:
16.5 mm
Colour:
Grey, similar to RAL 7035
