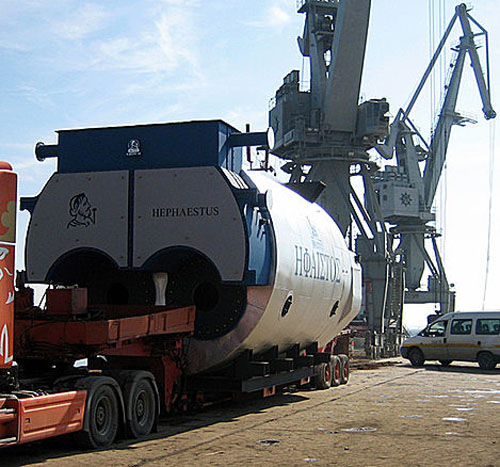

superheated steam boiler / saturated steam / hot water / natural gas
EAGLE K

• Product:

  superheated steam, saturated steam, hot water

• Power source:

  natural gas, biogas, fuel oil, biomass

• Other characteristics:

  horizontal, three-pass, low-emission

• Steam production:

  Max.: 60,000 kg/h (132,277.36 lb/h)

  Min.: 400 kg/h (881.85 lb/h)

• Power:

  Max.: 50,000,000 W (170,607,000 BTU/h)

  Min.: 300,000 W (1,023,642 BTU/h)

• Pressure:

  40 bar (580.15 psi)

Design:
Horizontal Flue gas Boiler type SCOTCH
Fully packaged which can produce hot water or steam
(3 x) Independent passes
Furnace is located in the centre and the second and the third pass are located symmetrically above the furnace
Low thermal stresses due to symmetrical boiler design
Low heat surface load 35-38 kg/m2
Big steam drum
Single or Twin Full Corrugation Furnace
Full wet – immersed reverse chamber-box
Curved – Flanged Boiler & Box Plates

Main advantages:
High efficiency up to 93 %
Higher efficiency up to 97 % by inducting a economizer
Low emissions due to large corrugated furnace and proper selection of burner
The design of three independent design – large corrugated furnace and the wet back box of the K series steam boiler enhance reliability and a lifetime for the boiler

Medium:
Saturated or Superheated steam
Hot or Superheated Water
