Handling crate 410

protectionsafetyfor food applications

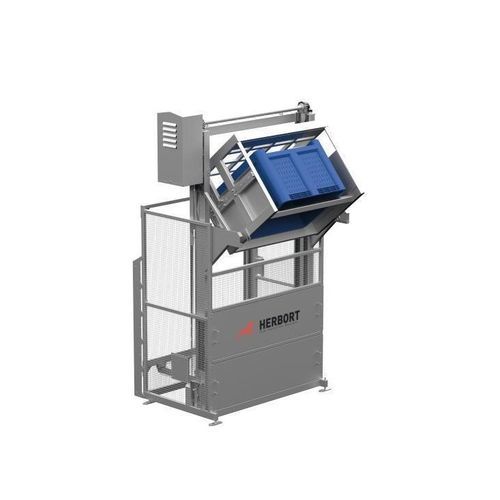

The Box Tipper 410 empties crates by tilting them onto a hopper or conveyor. A loaded crate is placed on the electrically driven tipping platform and secured by a holding bar. As the platform tilts, produce slides onto the receiving surface in a controlled manner; tipping speed is adjustable to match product fragility.

Benefits

• Laser safety curtain for operator protection.
• Smooth, even discharge to minimize damage to delicate produce.
• Automates crate emptying to reduce manual handling and increase throughput.

Operations

• Supplying, receiving, feeding

Technical specifications

• Lifting capacity: 500 kg
• Lifting height: 1,500 mm
• Lifting speed: 0.12–0.8 m/s
• Tilting angle: max. 45°
• Loading height: 300 mm
• Crate dimensions: Euro standard — 800 x 1,200 x 760 mm
