Digital camera HZ-HA-170acousticindustrialfor scientific applications
Add to favorites
Compare this product
Characteristics
- Technology
- digital, acoustic
- Applications
- industrial, for scientific applications
- Function
- for gas leak detection, leak detection, flame detection, for VOC gas leak detection, for partial discharge detection, corona detection, for SF6 gas leak detection, corona and arcing detection, inspection, measuring
- Spectrum
- infrared, ultrasonic
- Sensor
- CMOS
- Resolution level
- HD
- Other characteristics
- high-sensitivity, with microphone, ATEX, long-range, dual-view, temperature-controlled, portable
Description

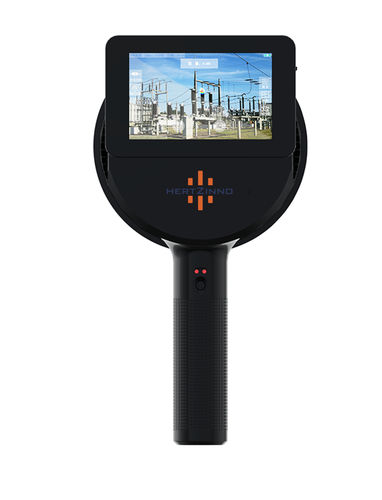

The HA-170 is a handheld acoustic camera equipped with an ultra-high sensitivity 128-channel MEMS microphone. It is primarily used for local partial discharge localization imaging, gas leak localization imaging, and vibration monitoring. This device supports functions such as discharge type prediction, PRPD imaging, and gas leak estimation, making it a high-performance handheld acoustic camera.With HERTZINNO intelligent offline analysis software can generate reports with a single click, without the need for human intervention, reducing personnel training costs. The device boasts a super-long 6-hour battery life and ATEX performance. In the power industry, it can be used for tasks such as detecting local partial discharges and SF6 gas leaks. In the chemical industry, this device can detect minor leaks up to 150 meters away.
VIDEO
Catalogs
HZ-HA-170
3 Pages
