Electric duct heater PH62

AC

Product overview

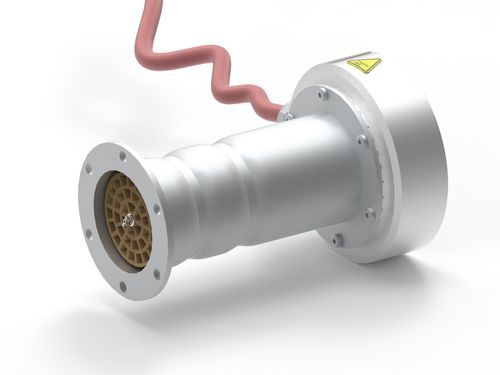

The Pipe Air Heater PH62 is a compact pipe-mounted electric air heater designed for easy integration into piping systems via flanges on both the inlet and outlet. It provides supply air temperatures up to 180°C in recirculation mode and is engineered for high system pressures, suitable for closed systems.

Available variants / items:

• 5114352 — Pipe Air Heater PH62 | 4.4 kW / 400 V
• 5114702 — Pipe Air Heater PH62 | 7.6 kW / 400 V

Additional product information:

• Equipped with flanges on both inlet and outlet sides for straightforward piping integration.
• Supply air temperatures up to 180°C (recirculation mode at the air inlet).
• Designed for high system pressures — suitable for closed systems.
• Comparison sheet available listing all PH62 models (manufacturer datasheet referenced on product page).

Technical specifications:

• Voltage [VAC]: 400-480
• Frequency [Hz]: 50/60
• Power [kW]: 4.4 - 11
• Current [A]: 6.4 - 13.2
• Min. air flow [l/min]: varies depending on power (see technical datasheet) — variant-specific values: 450 l/min (lower power variant), 710 l/min (higher power variant)
• Supply air connection [Ø mm]: 86
• Exhaust opening [Ø mm]: 60
• Protection class: I
• Measurements [mm - L x B x H]: 112.5 x 183 x 92
• Conformity marking: CE
• Weight incl. cable [kg]: 2.7
• Max. pressure supply air [bar]: 6
• Max. air flow [°C]: 650
• Max. air entry [°C]: 180
