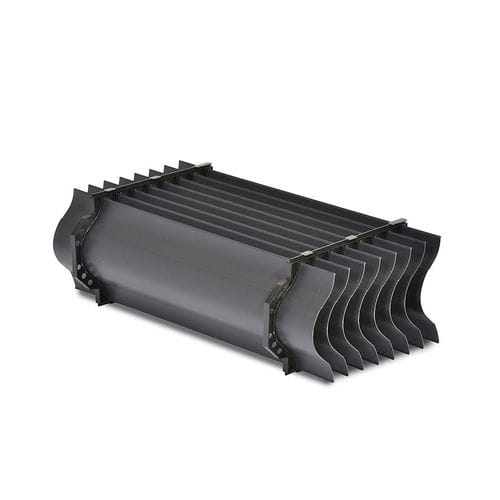

PVC structured fill block DE 177

for water treatmentfor cooling towers

DE 177 BLADE DROPLET ELIMINATOR Features High durability - Use of age-resistant, effective materials Complies with the highest fire protection regulations - Own formula using highly effective additives Modular assembly using spacers - Profiles remain in a stable position once installed High depostion rate - Through a special design construction Standard dimensions: 6000 x 177 (Length x Height) Different dimensions are available upon request Depostion rate: < 0,005 % Material: Polyvinylclorid (PVC) Operating temperatures: 55° C - constant - , max 60° C - short term Flammability rating: ASTM E84, DIN 4102-B2 Features Blade droplet eliminators are highly effective drip catchers and can be adapted to the respective installation conditions. Due to the very stable profile holders, they can also be cleaned of coarse dirt using a high-pressure cleaner which correspondingly leads to an extended operating lifespan of the system. Blade droplet eliminators has a special additive which ensures efficient UV protection. This additionally guarantees a long service life with sustained long-term efficiency with only a very slight drop in pressure.
