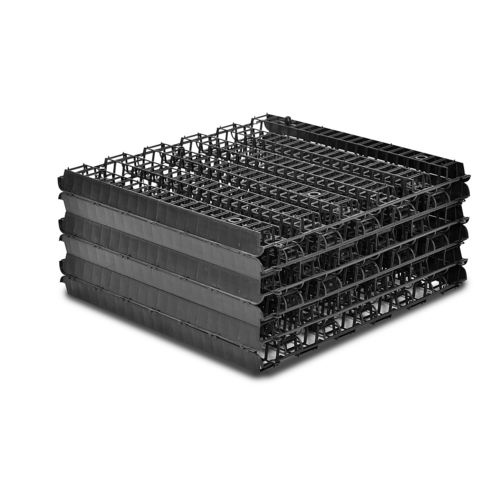

PP structured fill block SPLASHBOX

for cooling towers

SPLASHBOX Features High flexibility according to installation situation - Variable dimensions and different strength classes Optimised heat and mass transfer - Open cross structure generates high turbulence and consequently performance High durability - Use of age-resistant, effective materials Complies with the highest fire protection regulations - Own formulas with use of highly effective additives Standard dimensions: 650 x 300 (Length, Height) Different dimensions are available upon request Air flow: 680 mm Channel structure: Vertical straight Material: Polypropylen (PP) Operating temperatures: 97 % Flammability rating: ASTM E 84, UL 94, DIN 4102-B2 Features High-performance trickle grids are highly effective drip catchers and can be adapted to the respective installation conditions. This strength is determined by two special factors - on the one hand by the mechanical joining technique of the individual grids and the specially developed material composition of the single grid mats. Particular attention is paid to environmental compatibility (solvent-free), simple and fast mechanical processing by means of patented assembly technology. In addition, every local fire protection requirement is strictly adhered to.
