Electric pump HEP1 Range

industrialhigh-pressurefor low-pressure applications

Overview

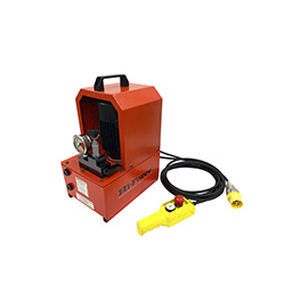

The HEP1 electric-driven, pendant-controlled compact hydraulic pumps are designed for a wide range of industrial applications. The two-stage design delivers high flow in the 1st stage and precise high-pressure control in the 2nd stage. Maximum working pressure: 700 bar (≈10000 psi). Compact unit with integral carrying handle and IP55 ingress protection.

Key features

• Two-stage pump design: 1st stage for high flow, 2nd stage for precise high-pressure operation.
• Maximum working pressure: 700 bar (≈10000 psi).
• Automatic low-to-high pressure changeover for continuous operation.
• Usable oil capacity per pump: approx. 4.0 L (1.06 gal); total reservoir capacity: approx. 7.0 L (1.85 gal).
• Motor voltage options (single‑phase): 110V 50 Hz, 120V 60 Hz, 230V 50 Hz, 220V 60 Hz.
• Remote pendant controller supplied (3 m / 10 ft control cable).
• Ingress protection: IP55.
• Models with suffix 'R' include externally adjustable relief valve and glycerin‑filled pressure gauge.

Typical applications / configuration options

• Valve options: 3‑way dual‑purpose valve (advance/auto‑retract for crimping and cutting; advance/hold/retract for lifting) and 4‑way manual valve with load holding.
• 3‑way and 4‑way valves available with or without externally adjustable pressure relief valve and pressure gauge.

Performance notes

• 1st stage flow: up to 158.66 in³/min (50 Hz) — approx. 2.6 L/min; 60 Hz models deliver ~15–20% higher flow.
• 2nd stage flow: 21.97 in³/min (50 Hz) — approx. 0.36 L/min.
• Total usable oil reservoir per pump: approx. 4.0 L; total reservoir capacity: approx. 7.0 L.

Technical tables (flow / models)
Model Number | Valve Type | Usable Oil Cap. (L / gal) | 1st stage (in³/min) | 2nd stage (in³/min) | Motor Voltage | 60 Hz motor model | Weight (lbs / kg)
HEP1341 | 3-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 110V 50 Hz - 1Ph | HEP1341H | 54.0 / 24.5 kg
HEP1341R | 3-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 110V 50 Hz - 1Ph | HEP1341HR | 56.2 / 25.5 kg
HEP1342 | 3-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 230V 50 Hz - 1Ph | HEP1342H | 54.0 / 24.5 kg
HEP1342R | 3-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 230V 50 Hz - 1Ph | HEP1342HR | 56.2 / 25.5 kg
HEP1441 | 4-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 110V 50 Hz - 1Ph | HEP1441H | 55.1 / 25.0 kg
HEP1441R | 4-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 110V 50 Hz - 1Ph | HEP1441HR | 57.3 / 26.0 kg
HEP1442 | 4-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 230V 50 Hz - 1Ph | HEP1442H | 55.1 / 25.0 kg
HEP1442R | 4-way | 4.0 L / 1.06 gal | 158.66 | 21.97 | 230V 50 Hz - 1Ph | HEP1442HR | 57.3 / 26.0 kg

Technical tables (dimensions)
Model Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm)
HEP1341 / HEP1341R / HEP1342 / HEP1342R | 450 | 160 | 240 | 330 | 330
HEP1441 / HEP1441R / HEP1442 / HEP1442R | 450 | 160 | 240 | 350 | 330

Notes

• Total oil reservoir capacity approx. 7.0 L.
• All 110V and 230V models are supplied for 50 Hz as standard; 60 Hz models (120V and 220V) provide ~15–20% higher flow.
• Models with suffix 'R' include an externally adjustable relief valve and glycerin‑filled pressure gauge.

Technical specifications / caractéristiques

• Working pressure: 700 bar (≈10000 psi).
• Two‑stage operation: 1st stage high flow (≈2.6 L/min at 50 Hz / 158.66 in³/min), 2nd stage high‑pressure control (≈0.36 L/min at 50 Hz / 21.97 in³/min).
• Usable oil reservoir (per pump): approx. 4.0 L; total reservoir capacity approx. 7.0 L.
• Motor voltage options: 110V 50 Hz, 120V 60 Hz, 230V 50 Hz, 220V 60 Hz (single‑phase).
• Valve options: 3‑way dual‑purpose or 4‑way manual with load holding; optional external relief valve and pressure gauge on 'R' variants.
• Internal pressure relief valve preset at 700 bar.
• Remote pendant controller supplied (3 m / 10 ft control cable).
• Ingress protection rating: IP55.
• Model weights and dimensions: see tables above.
