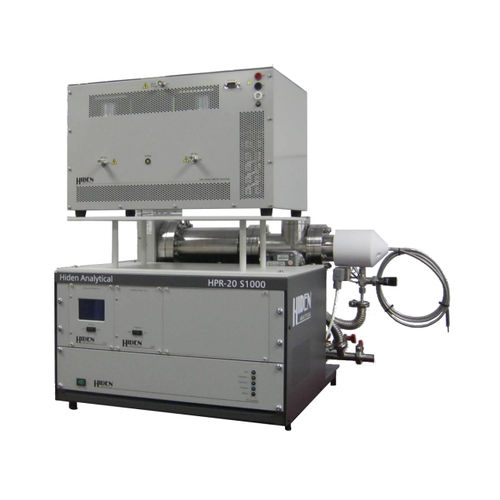

Mass spectrometer HPR-20 S1000

quadrupolefor gas analysis

With 1000 amu mass range The Hiden HPR-20 S1000 gas analysis system configured for continuous analysis of gases and vapours at pressures near atmosphere in standard form, alternative systems being offered for applications requiring direct sampling from higher pressures to 30 bar. Thermal analysis TA/MS Catalysis Fuel cells CVD / MOCVD / ALCVD Environmental monitoring Glovebox monitoring Gas separation studies The Hiden HPR-20 S1000 gas analysis system is configured for continuous analysis of gases and vapours at pressures near atmosphere in standard form, alternative systems being offered for applications requiring direct sampling from higher pressures to 30 bar. The Hiden QIC quartz-lined sampling interface operating at 200oC provides fast response times of less than 300 milliseconds for most common gases and vapours, including water vapour. A dry scroll pump is included to provide high performance combined sample bypass and UHV foreline pumping to provide optimum performance for applications with significant concentration of light gases, helium carrier gas for example. The standard HPR-20 S1000 system includes the Hiden 3F series 1000 amu mass range triple filter quadrupole mass spectrometer with dual Faraday and pulse ion counting electron multiplier detectors. Detection capability is to less than 5 parts-per-billion. Triple filter mass spectrometer Mass range options 50, 300, 500 or 1000 amu Enhanced abundance sensitivity Detection to 5 ppb APSI-MS soft ionisation mode 7 decade continuous dynamic range
