Air pre-filter PVCY, PVELcompressed aircartridgecentrifugal
Add to favorites
Compare this product
Characteristics
- Designed for
- air, compressed air
- Filtration element
- cartridge
- Filtration method
- centrifugal, vacuum
- Applications
- industrial
- Material
- polyester
- Filtration size
Max.: 15 µm
Min.: 2 µm
- Flow
Max.: 1,870 m³/h
(66,038.427 ft³/h)Min.: 68 m³/h
(2,401.397 ft³/h)- Fluid temperature
Max.: 104 °C
(219.2 °F)Min.: -26 °C
(-14.8 °F)
Description
-Vacuum extreme filtration for very dusty environments.
-Built in fibre composite materials, moulded & durables.
-It is recommended that you use the PVCY pre-filter with cases equipped with a cellulose element (or polyester upon request).

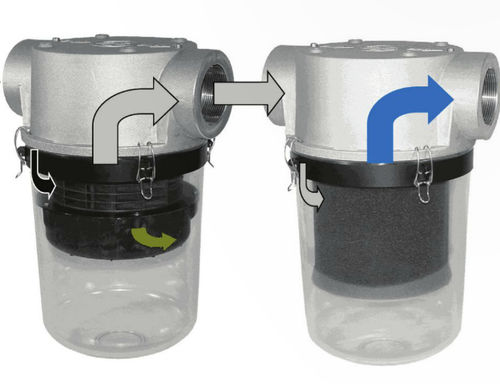

Operating principle:
-Centrifugal force from intake air causes particulate to separate from air stream, forcing it to the outer cover perimeter and
finally into the collection bowl.
-The PVCY pre-filters eliminate 85% of the particles with *15 pm of air flow.
-The flow is then cleaned of 99% of the particles with *2 pm by going through a second body equipped with a pleated element.
