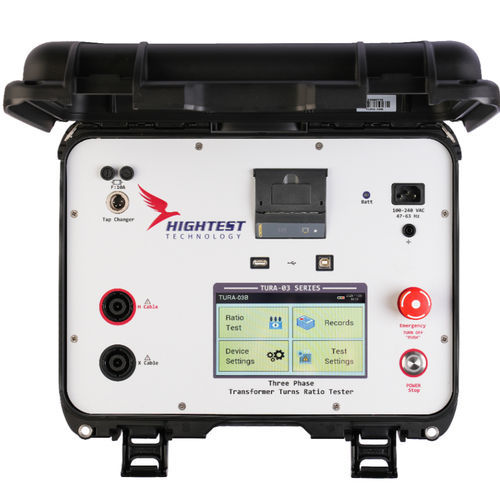

Digital ratiometer TURA-03 series

for transformers

TURA-03 series turn ratio meters can test turns ratio by making only a one-time connection to transformers and automatically test all phases. TURA-03 series turn ratio testers can make automatic vector group detection and calculate ratio error. Tura-03 series turn ratio testers are very easy to use with the 7-inch display and user-friendly interface. Three-phase Turns Ratio Measurement Single-phase Turns Ratio Measurement Ranges from 0.8 to 50,000 ratio measurement High Accuracy (0.08 %) 1V, 4V, 10V, 40V, 100V and 250V AC test voltages Ratio Error Measurement Excitation Current, Phase Angle, Polarity, Magnetic Balance Measurement Built-in Printer Automatic vector group detection (group number) DMP Software Internal memory, USB Flash Drive Remote control via USB cable Optional Bluetooth control and communication 7-inch colour touch display Weight: 7.1 kg Dimensions: (16.7x13.4x6.8)″ (42.4x34.0x17.3) cm
