Resistance measuring instrument WINRES-20 seriestransformerUSBadjustable
Add to favorites
Compare this product
Characteristics
- Technology
- resistance
- Other characteristics
- USB, adjustable, single-phase, transformer
Description

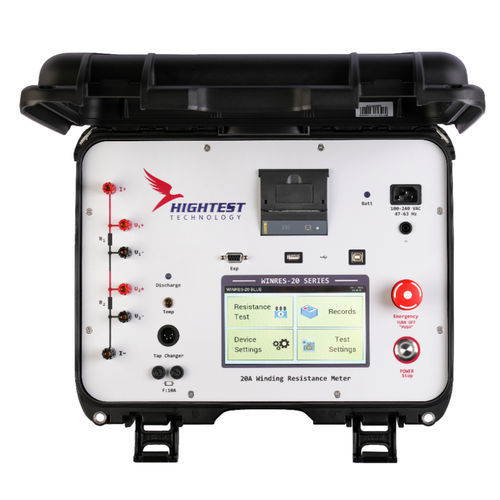

WinRes-20 winding resistance tester can measure from 0.01 microohm to 100,000 Ohm resistance value. Can be expandable with a three-phase adapter.
2-channel resistance measurement
Measurements from 0.1 μΩ to 100,000 Ω
0.001 A to 20 A DC adjustable current output
High accuracy (0.1%)
Test Voltage 50 V
Demagnetisation feature
Intelligent Decision Criteria (IDC)
Built-in printer (2.28-inch)
Internal memory, USB Flash Drive
DMP Software
Remote control / analysis via USB cable
Optional Battery and Bluetooth
7-inch TFT touch display
Temperature correction (1 input, optional sensor)
Weight: 7 kg
Dimensions: (16.7x13.4x6.8)″ (42.4x34.0x17.3) cm
VIDEO
Catalogs
