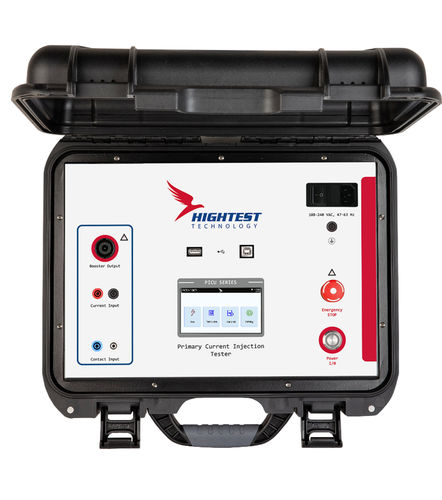

Injection tester PICU-1000

primary currentfor transformersfor electrical installations

PICU-1000 is designed using advanced engineering technology to inject current up to 1000A. PICU-1000 is applicable on current transformers, shunt or wherever high current injection is in need of up to 1000 VA power. PICU is a fully automatic primary injection instrument with capability the capability of CT Turns Ratio Testing in addition to MCCB Timing tests. 4.3" TFT touch display shows all measurement results on a single screen. With a USB, users can record/ store measurement results. If setting up a laptop or PC for the field test is difficult, users can record data to the device's internal memory or an external USB flash memory. Multi-language capability and user-friendly operation menu make it easy to control, even by less trained staff. It is a light, compact and rugged device with the protection class IP67 (case closed). Features MCCB Timing Tests, CT Turns Ratio High Output Power Frequency-selectable Fully Automatic 4.3-inch TFT touch colour Display PC Software (reporting) Internal Memory (Additional External Memory also available) Compact and Light-weight PC Software (reporting) Technical Specifications Measurement Parameters - MCCB Timing Tests, CT Turns Ratio Output Current - Up to 1000 A Maximum Output Power - 1000 VA Output Frequency - 40-70 Hz Power Supply - 100-240 V 47/63 Hz Memory - Up to 100 records, Unlimited Storage using an external USB Communication - USB 2.0/1.1 Standard-A, USB 2.0/1.1 Standard-B PC Software - DMP Software (reporting) Display - 4.3-inch colour touch display
