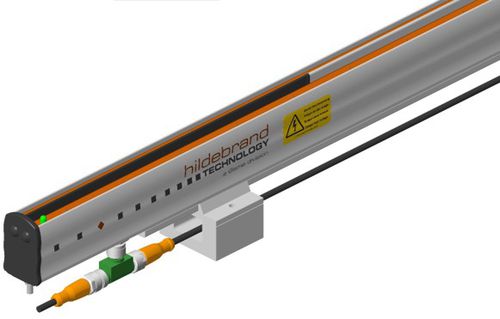

ATEX anti-static bar iONstream 4.0 - VC

iONstream 4.0 is a high performance AUTO DC Technology® static neutralising system. It incorporates the latest technological developments and is micro-controller operated with local embedded intelligence. Electrode contamina-tion and emitter pin status, as well as neutralising efficiency, are continuously monitored and visualized. Each neutralising bar is accessible via a GateWay or via the iONcontrol touch panel. Parameters can easily be read and controlled by process engineers. The specially developed AUTO DC Technology® senses the polarity of the charge on the target substrates surface and automatically corrects the pulse/pause relationship towards the dominant polarity surface charge in order to achieve maximum neutralising effect. All electronic components and high voltage parts are encapsulated inside the bar profile. The System is available in three versions (6, 12, 18 kV) for normal, long and very long neutralising range and very high web speed. Shock proof according EN 60335 ATEX II 2G IIB T6 and II 2D IIIB T85 ˚C Number of certification PTB 16 ATEX 5007 X
