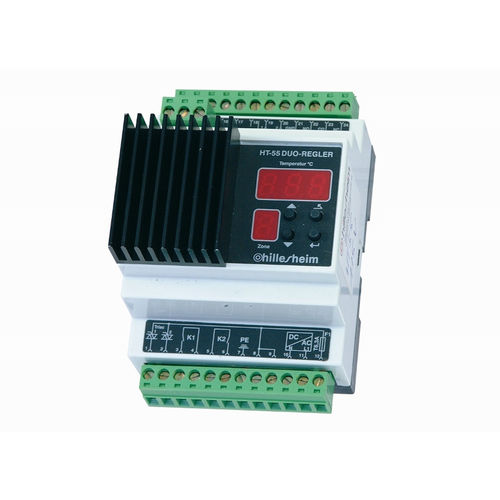

Thanks to its free configurability, the HT 55 is a universal controller in machine, system and apparatus applications. In the design of this device, particular attention was paid to making its handling simple and comprehensible. Mounting on standard rails and the removable terminals (plug-in blocks) guarantee use even under difficult installation conditions in the switchgear cabinet.
Voltage supply - 230 Volt AC / 50 Hz or 24 Volt DC
115 Volt AC / 50 – 60 Hz optional
Sensor types - Fe-CuNi (J), NiCr-Ni (K) PT100 NI-120, sensor breakage protection, sensor polarity control, short-circuit monitoring
Tolerance - 1 % of the relative temperature
Actual/target value display - 3-digit LED display (13 mm) scan operation between channel 1 and 2
Controller output A - via 2 internal triacs max. power 1200 W for both channels together
Controller output B - via two mechan. changeover relays, switching power 2 x 1500 W at 230 V AC
Controller output C - 2 x 12 V DC to control a solid state relay to switch higher powers
Configuration - as dual controller, each channel is configured as a controller / limiter each channel monitors the other
Optional - two independent 4 – 20 mA inputs for external setting of setpoint
Protection type - IP40 (EN 60529), protection class I
Controller dimensions - 72 x 70 x 90 mm (H x W x D)
Connections - pluggable connection terminals
Operation - parameter assignment and configuration using keypad
