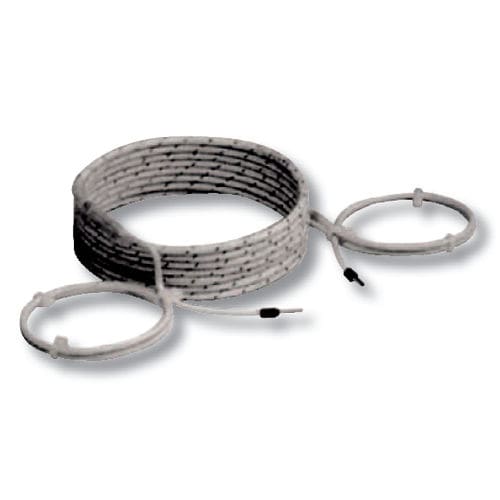

Heating cord HS/HSS series

Heating cord for tight winding radii HS: Glass silk insulated heating cord. Very flexible, especially suitable for tight winding radii and concentrated power. The connecting cables are glass silk insulated. The heating cord has no PE conductor and is not moisture-proof HSS: with additional PE conductor braiding. Construction is the same as type HS. Operating temperature - max. 450°C Rated voltage - 230 V AC Minimum bend radius - 4 mm Connection cable - 1.5 m single-wires at both ends Diameter - Ø 3 – 4 mm Protection type - IP20 (EN 60529), protection class I PE conductor braiding - none, not moisture-proof HSS - Operating temperature - max. 450°C Rated voltage - 230 V AC Minimum bend radius - 6 mm Connection cable - 1.5 m single-wire both ends Diameter - Ø 3.5 – 4.5 mm Protection type - IP20 (EN 60529), protection class I PE conductor braiding - nickel, not moisture-proof
