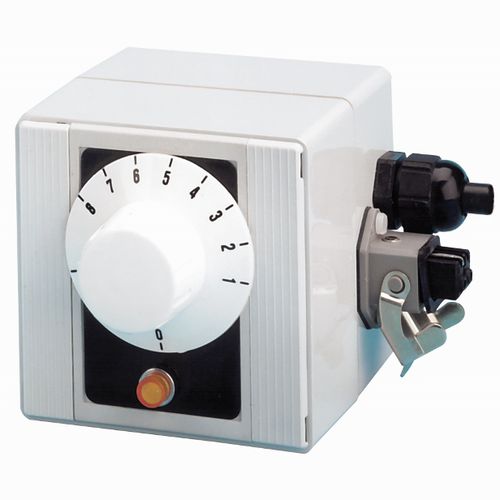

Heating temperature regulator HTL 13

analogprogrammablecompact

The Hillesheim HTL 13 is suitable for automatic, continuously adjustable temperature control of electrical heating systems and heating units. The load is connected via an in-built flange socket. The continuously adjustable temperature control is achieved by automatically switching the power supply on and off in precise time intervals. The duty cycle of the power supply can be continuously adjusted with the knob on the power controller. This means that with a low setting the power output cycle is briefly on - long off, with a higher setting the power controller is briefly off - long on. Voltage supply - 230 V AC, 50 / 60 Hz Controllable heating power - 2990 W (max. 13 A) Temperature setting - knob / scale Switching cycle - depending on setting 10 – 80%, or max. 100% Protection type - IP 54 (EN 60529) in the connected state Connecting cable - 1.3 m Plug - Euro 16 A Socket - Hirschmann STAKEI 200, 2 + PE Housing material - polycarbonate, grey Housing dimensions - 80 x 80 x 80 mm (W x H x D)
