Chemical wall anchor Kwik-X SS316

metalfor heavy loads

Product description

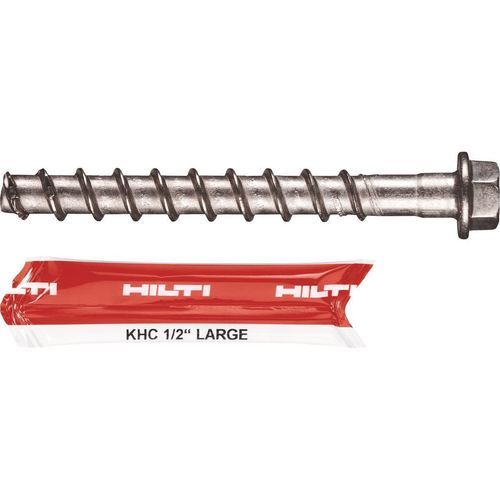

Dual Action Anchor System includes stainless steel KH-EZ SS316 screw anchors and KHC adhesive capsules. Designed for corrosion-resistant fastening in concrete, the system combines the load performance of adhesive anchors with the installation speed and simplicity of screw anchors.

Key product details

• Base material temperature at installation - range: -18 - 104 °F
• Installation tools: SIW 4AT-22 ½″ Cordless impact wrench, SIW 8-22 ½″ Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
• Removable: Yes

Features

• Combination of high load capacity, productivity and simple installation through dual-action technology that unites adhesive-anchor performance with screw-anchor speed
• Pre-configured KHC adhesive capsules reduce installation steps and eliminate the need for brushes, air pumps or dispensers
• Up to 4× faster installation than injectable mortars when used with an impact driver; enables faster setting and the possibility of immediate loading
• Comprehensive technical data including ESR for concrete and seismic categories A–F; supported by the PROFIS engineering software suite
• System comprises KHC adhesive capsule and KH-EZ SS316 screw anchor for high-performance anchoring of steel to concrete

Applications

• Fastening structural and non-structural steel baseplates to concrete in corrosive environments (e.g., outdoor installations)
• Attaching balcony railings, handrails, safety barriers, guard rails and signs

Technical data (table)
Base material temperature at installation - range: -18 - 104 °F
Installation tools: SIW 4AT-22 ½″ Cordless impact wrench, SIW 8-22 ½″ Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
Removable: Yes
In-service temperature – range: -40 - 176 °F
Shelf life from date of manufacture (at 73°F/23°C and 50% relative humidity): 24 months
Storage and transportation temperature range: 41 - 77 °F
PROFIS Software: Yes

Technical specifications

• Material: Stainless steel KH-EZ SS316 screw anchors and KHC adhesive capsules
• Base material installation temperature: -18 - 104 °F
• In-service temperature range: -40 - 176 °F
• Shelf life (at 73°F/23°C, 50% RH): 24 months
• Storage & transportation temperature range: 41 - 77 °F
• Installation tools recommended: SIW 4AT-22 ½″, SIW 8-22 ½″, SIW 6AT-22
• Removable: Yes
• PROFIS engineering software support: Yes
