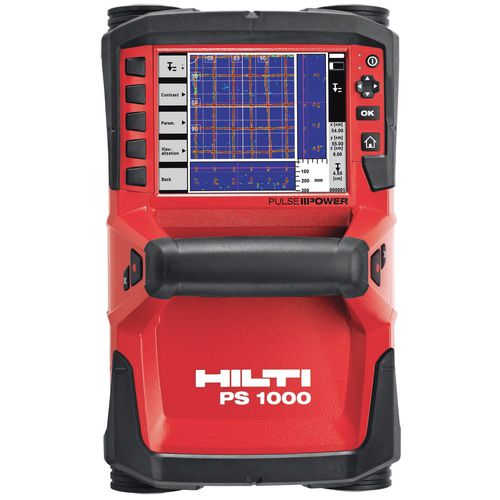

3D scanner PS 1000 X-Scan

for measuringinspectionlaser

Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers Max. detection depth for object localization: 12 in Accuracy of depth indication: 100 mm: ±15 % Localization accuracy: ±10 mm Features Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation Applications Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm Minimizing hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work Rebar extension (post-installed rebar connections) in structural applications Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings Detection of voids and cavities
