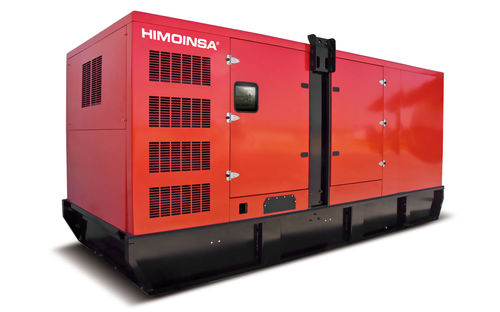

Diesel generator set HMW-605 T5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Applications
- industrial
- Options and accessories
- soundproof
- Power in kVA
Max.: 660 kVA
(897.35 hp)Min.: 601 kVA
(817.13 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The MTU 12V1600G10F Diesel engine with 4 strokes-cycle and direct injection
uses turbocharged and aftercooled aspiration. It has 506 kW prp and 558 kW
standby rated output. It comes with a 12V Bore and Stroke: 122 x 150 mm
cylinder arrangement and has a displacement of 21 L. It is cooled with coolant.
For lubrification it uses S10 W40. It has a 17,5 compression ratio and a standby
fuel consumption of 128,6 l/h with a 100% consumption of 116,99 l/h.
It's lube oil consumption is 0.5% of fuel consumption. It can accommodate up to
72,5 l of oil including tubes and filters, with a total capacity of 99 l.
