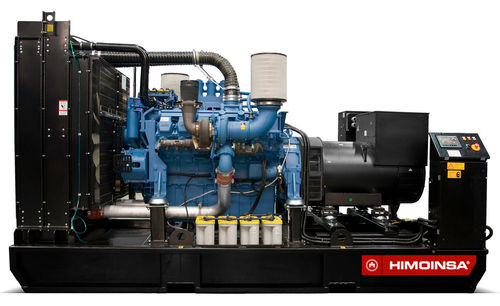

Diesel generator set HMW-300 T5

three-phase60 Hzdirect fuel injection

The MTU Industrial Range has a 264.2kW prp and 2kW standbyrated output. Its model number is 6R1600G20F and it has a diesel four strokes-cycle engine. It is a direct injection and turbocharged, after-cooled aspiration type. The equipment has a 6-L cylinder arrangement and 122 x 150mm bore and stroke, with a 10.5L displacement. Water is its cooling system and it uses S10 W40 lube oil. The range has a 17.5 compression ratio, and its standby fuel consumption is 69.65l/h. Fuel consumption at 100% PRP is 64.36l/h, at 75% it is 49.94l/h, at 50% it is 36.64l/h, and at 25% it is 21.03l/h. The full load lube oil consumption is 0.5% of fuel consumption, and total oil capacity with filters and tubes is 46L, while total oil capacity is 84L. There is a dry air filter, a 106mm inner diameter exhaust pipe and a 24V electrical system. There is also a radiator with fan.
