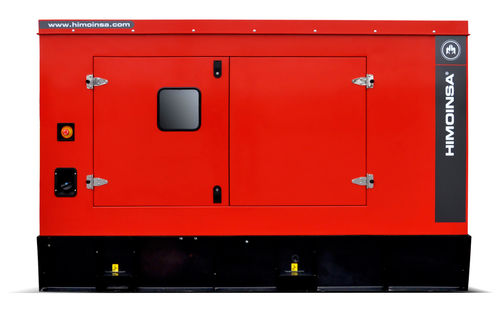

Diesel generator set HHW-140 T6
three-phase50 Hzdirect fuel injection

Diesel generator set - HHW-140 T6 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Diesel generator set - HHW-140 T6 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial
Options and accessories
with cover, soundproof
Power in kVA

Max.: 170 kVA
(231.14 hp)

Min.: 156 kVA
(212.1 hp)

Description

Rated Output: 132 kW prp; 145,7 kW standby Manufacturer: HIMOINSA Model: HMA6TAG1 Engine Type: Diesel 4 strokes-cycle Injection Type: Direct Aspiration Type: Turbocharged and aftercooled Ciylinders Arrangement: 6 - L Bore and Stroke: 104 x 113 mm Displacement: 5,76 L Cooling System: Liquid (water + 50% glycol) Lube Oil Specifications: API CF4, SAE 15W40 Compression Ratio: 17,5:1 Fuel Consumption 100% PRP: 31,86 l/h Fuel Consumption 75 % PRP: 23,91 l/h Lube Oil Consumption Full Load: 0,15 % of fuel consumption Total oil capacity including tubes, filters 14 L Total Oil Capacity: 30 L Governor Type Electrical Air Filter Type Dry Inner diameter exhaust pipe: 80 mm Diesel engine 4 strokes-cycle Water-cooled 12V Electrical system Radiator with blowing fan water separator decanting filter (no visible level) Mechanical governor Dry air cleaner Hot components and radiator guards Mobile components guards
