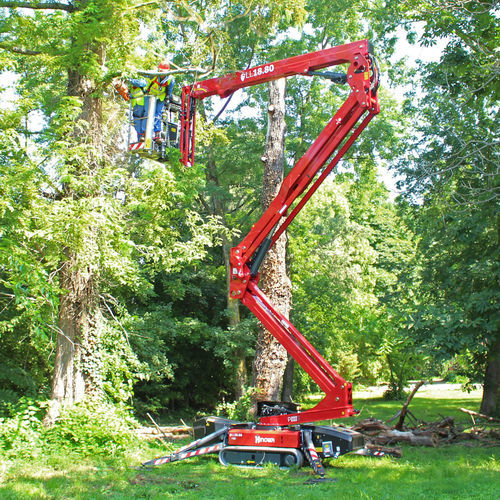

Crawler spider lift LIGHTLIFT 18.80
self-propelledelectricdiesel

crawler spider lift
crawler spider lift
crawler spider lift
crawler spider lift
crawler spider lift
crawler spider lift
Add to favorites
Compare this product


Characteristics

Portability
crawler, self-propelled
Motor type
electric, diesel, gasoline engine
Applications
indoor/outdoor
Other characteristics
compact
Working height

18.55 m
(60'10" )

Lift capacity

230 kg
(507.1 lb)

Description

The new Lightlift 18.80 Performance IIIS tracked aerial platform is a high-performance and at the same time ultra-compact lift. This innovative machine, designed by Hinowa’s team, can reach a working height of 18.50 m with a reduced footprint and is destined to be a popular choice among platform renters worldwide. It also features 7.8 m working outreach, 230 kg payload (two people + accessories) in any positions and excellent travel speed. The LL18.80 PIIIS is also distinguished by a new design and an extension arm with no tubes and external cables. The radio control (optional) is an important new feature which guarantees maximum comfort during loading/unloading operations, movement and automatic stabilisation and destabilisation procedures. It is compact, functional and very easy to use. It can be stored in the control box on the ground. 2.92 x 2.92 m stabilisation area, ideal for working in very small spaces both indoors and outdoors. Lightlift 18.80 PIIIS offers four motorisation options: - Honda 11.7 HP petrol engine with 3,600 rpm and 220V electric motor; - Kubota 14.5 HP twin-cylinder water-cooled diesel motor with 3,200 rpm and 220V electric motor; - electric system (7.7 kWh) powered by lithium-ion battery pack which guarantees zero emissions and high performance in terms of autonomy, low noise level and environmental impact; - dual-energy system for reduced CO2 emissions with one heat engine and one electric motor.
