Voltage probe 9 series

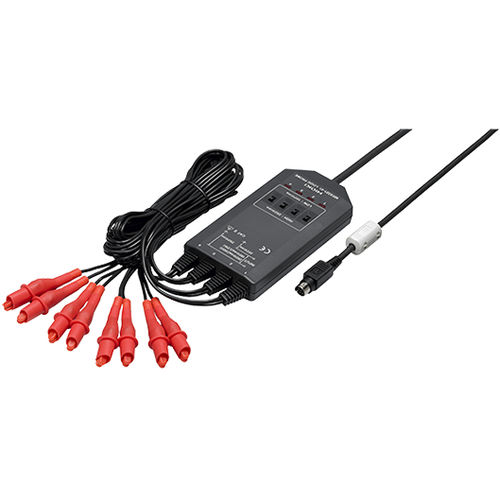

DIFFERENTIAL PROBE P9000 Easily Connect to Hioki Memory HiCorders and HiLoggers for High Voltage Testing Overview • - Compact probe for CAT III 1000V environments • - Wave mode: Observe instantaneous waveforms • - RMS mode: Observe RMS value waveforms • - Principal areas of use - 1. High-voltage battery circuits in EVs, HEVs, and other automobiles - 2. High-voltage circuits in energy-related equipment such photovoltaic cells - 3. Commercial power line circuits (480 Vrms, etc.) - 4. High-voltage surge noise from inverters, motors, solenoids, etc. LOGIC PROBE MR9321-01 Detect AC/DC voltage with Memory HiCorders Overview • 4 isolated channels • ON/OFF detection of 100V/200V AC voltage, or 24V DC • Detect of voltage interruptions on power line • High speed response of rise time of 1ms, fall time of 3ms • Connect to a Memory HiCorder with miniature terminal
