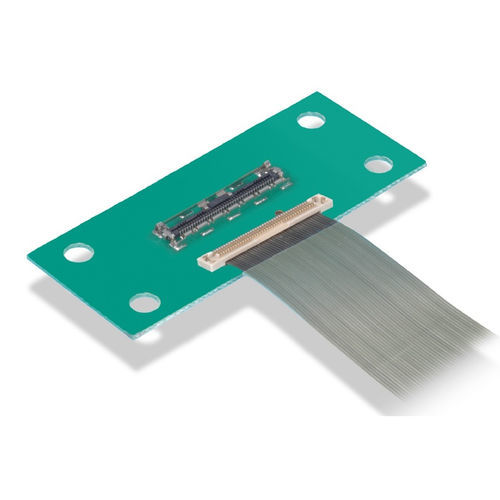

Data connector DF36 Seriesmicro-coaxialSMTwire-to-board
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- micro-coaxial, SMT, wire-to-board
- Shape
- parallel
- Connection type
- locking
- Electrical characteristics
- high-density, shielded
- Material
- gold, tin
- Domain
- for medical applications
- Other characteristics
- halogen-free
- Primary current
0.45 A
- Voltage
30 V
- Pitch
0.4 mm
(0.016 in)- Operating temperature
Min.: -35 °C
(-31 °F)Max.: 85 °C
(185 °F)
Description
0.4mm Pitch, Vertical Mating, Micro-Coaxial Cable Connector
1. Support High Density Mounting and Small- Diameter Hinge
2. Enhanced Shield Performance
3. Clickable and Secure Locking Design
4. Reliable Contact Design
5. Solder Wicking Prevention
6. Robust Plug Design
7. RoHS2, Halogen-free Compliant
