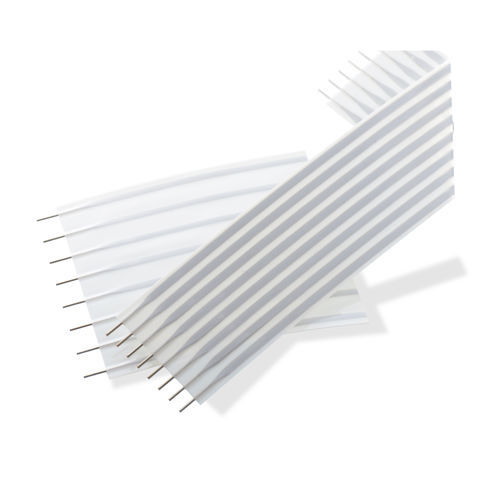

Data connector FIX

board-to-boardroundflat

Hitaltech FIX JUMPERS are highly flexible flat conductor connectors. Solid round conductors ensure fast and secure assembly. The round-flat-round technology combines both: The copper conductors are rolled flat to a defined geometry in the insulating area, ensuring the highest standards of vibration and bending resistance. The smooth notch-free transition from round to flat guarantees fracture-safe connection points. The following materials can be used for the insulation: Polyerster, Nomex (Aramid), PEN (Polyethlenaphthalat) or Polyimide (Kapton). • High vibration and bending resistance Reliable and fracture-safe connection Very easy handling • Immediately ready for installation • Economizes working time and assembly costs • Minimum space required • Wiring errors are avoided • Choice of various termination styles • Allows combination with male connectors Different pitches within one jumper available (MIX) Short insulation lengths also available as wire jumpers (without the flat rolled copper section) • Smooth notch-free transition from flat to round • Fracture-safe connection point Compensation of intrinsic vibrations Reduction of tension in the soldering area Avoidance of vibration resonances FLAT-ROUND-180° - ANALYSIS • Shifting of the bending stress into the flexible area • Reduction of the beding stress at the solder joint • High durabilitiy
