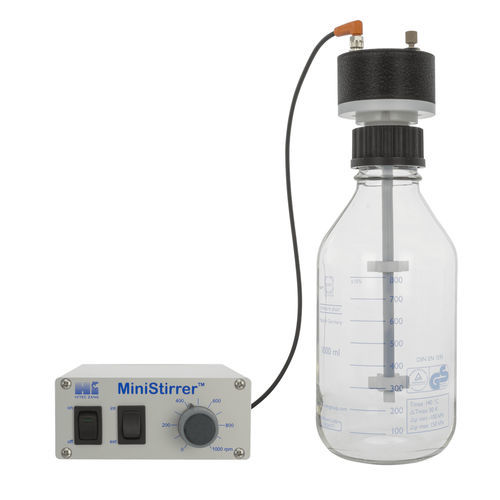

Measurement laboratory stirrer MiniStirrer™

benchtop

The MiniStirrer™ is the inexpensive alternative to ViscoPakt®-mini if no torque measurement is necessary. The MiniStirrer™ may also be used for the stirring of feeds, for example in conjunction with our GraviDos® dosing system. • Speed range : 0…1.000 rpm • Rot. speed uncertainty : 0.01 % • Chuck : - : 10 mm • Degree of protection for control device : IP20 • Degree of protection for drive : IP54 • Weight approx. (kg) : 0.4 : 0.65 • Diameter of motor (mm) : 70 • Length over A. approx. (mm) : Depending on the stirrer shaft • Shaft : Solid shaft • Assembly : With GL45 union nut • Interface : Switch input 24 V active and passive, as an option RS-422, RS-232 with converter, analogue 0…10 V • Scope of delivery : MiniStirrer™ with control device and 2.3 m connecting cable
