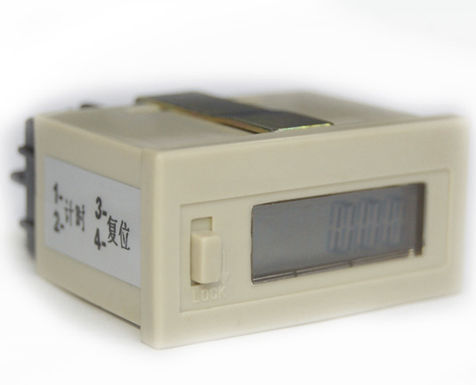

Counter with LCD display S3J

timeelectronicindustrial

S3J LCD counter is the latest ultra-small counter developed by our company, which adopts highly integrated SMD components, takes up little space, has a wide range of use and good anti-interference ability, and can be widely used in elevators, machinery, packaging, switchgear and other timing and counting fields. Technical Parameters Display - LCD display Bit - 6–digit Text height - 6 mm Power supply - Built-in lithium battery Battery life - About 7 years Counting frequency - 10Hz Counting scope - 0～999999 Reset mode - Panel button or external terminal Protection grade - Level 2 Front panel protection - IP54,DIN40050 Rear panel protection - IP00,DIN40050 Capacity of resisting disturbance - IEC801，level 2 Operating temperature - -10℃—+50℃ Storage temperature - -20℃—+70℃ Ambient humidity - 35～85%RH
