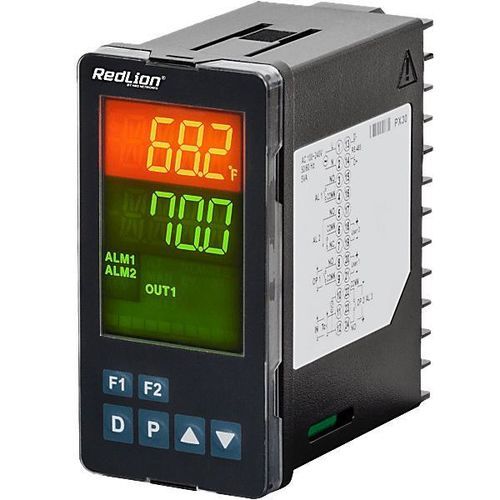

Indicator PID controller Red Lion PXU31B30

universal1 analog inputRS-485

Overview
The PXU PID Controller PXU31B30 from Red Lion is a 1/8 DIN process controller with AC power input (100–240 VAC), a clear dual-line LCD, and compact panel mounting for space-constrained installations. It provides proven PID control and supports multiple input types, RS-485 communications and flexible outputs for industrial process regulation.

Key features

• Reliable PID: supports on/off and full PID control suitable for basic to advanced loops.
• Compact 1/8 DIN size: ideal for panels with reduced depth.
• Main control input: 4–20 mA for process signals.
• Secondary output: relay for switching control.
• CT input: current transformer input for current-based measurements.
• RS-485 connectivity: remote monitoring and configuration via RS-485 using Crimson software.
• Protected dual-line display: two 4-digit lines with IP65 front protection and orange/green backlight.
• Universal inputs: accepts pressure transducers, flow meters, current transducers, RTDs and thermocouples configurable from front panel or software.
• Easy configuration: Crimson® software enables fast setup with checkboxes and numeric entries and batch programming.
• Alarms and indicators: configurable status indicators for alarms, control and temperature.
• AC powered: 100–240 VAC operation for global compatibility.

Applications & benefits
Designed for compact industrial installations requiring dependable PID regulation, flexible I/O and remote data access. The clear display and straightforward programming reduce commissioning time and simplify maintenance.

Technical specifications

• Item Number: PXU31B30
• Brand: Red Lion
• Certifications: CE, RoHS, UKCA, UL
• IP rating: IP65 (front)
• Shock and vibration: shock 30 g operational; vibration 10–55 Hz, 1 g operational
• Net Weight (g): 221.1261
• Packed Weight (g): 221.1261
• Mounting: Panel mount
• Input Voltage (V): 100–240 VAC
• Power Consumption (W): 8
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -20 °C to 65 °C
• Relative Humidity: up to 80% non-condensing (0 °C to 50 °C)
• Max installation altitude: 2000 m
• Housing material: Plastic
• Packaging material: Cardboard
• Warranty: 2 years
• Display type: LCD (dual line, 4 digits per line)
• Display size: Line 1 - 0.47" (12 mm); Line 2 - 0.47" (12 mm)
• Backlight: Orange and Green
• Connectors: Terminal; 1x RS485
• Battery: No
• ECCN: EAR99
• Dual usage: No
• Country of origin: India
• HS Code: 9032890090
