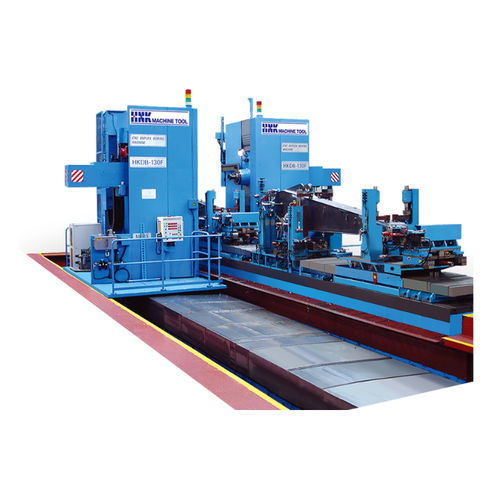

CNC boring machine HKDB-F series
horizontal2-axishigh-precision

CNC boring machine
CNC boring machine
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
2-axis, high-precision, multi-head, rigid
X travel

Min.: 5,000 mm (197 in)

Max.: 16,000 mm (630 in)

Y travel

1,500 mm, 2,000 mm (59 in)

Z travel

550 mm, 600 mm, 650 mm, 700 mm (22 in)

Power

Min.: 22 kW (29.91167 hp)

Max.: 26 kW (35.35015 hp)

Spindle diameter

130 mm, 150 mm (5 in)

Description

■ High efficiency ■ High precision ■ High rigidity ■ Rigid Ultra-Precision Spindle HNK's state-of-the-art spindle design offers high machining rigidity and long lasting spindle bearing life. - Oil and air mist lubrication - Built-in ultra-precision paired bearings - Long nose spindle head - Precise CNC quill control - Effective cooling system for minimal thermal expansion ■ Automatic Tool Changer(ATC) Optional 40/60 tool magazine Automatic Tool Changer(ATC) can be added on to all HKDB series machine that povide you with continuous and unmannde operation. - 40/60 tool magazine - Fully enclosed for safety - Tool shank type MAS BT50 - Pull stud type MAS P50T-1(45°) - Max. tool diameter of 240mm - Max. tool length of 400mm - Max. tool weight of 25kg ■ Gantry Plano Miller ■ Automatic Pallet Changer(APC) APC greatly reduce machine idle time during a set-up and increases overall machine productivity.(2 pallet. Optional item)
