Gear pump mzr-7265paintfor seawaterfor gasoline
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Technology
- gear
- Fluid
- paint, for seawater, for gasoline, acid, for coolant, polymer, diesel fuel, for biofuels, for liquified gas, for solvents, condensate, for wine, for adhesives, for polyurethane, for crude oil, for hydrocarbons, oil, for bases, for epoxy, fluid grease, for alkalis, for resin, fuel oil, alcohol
- Operation
- with DC motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- for laboratory, industrial, for water treatment, for the food industry, for the pharmaceutical industry, medical, for the printing industry, for the automotive industry, for marine applications, for renewable energy, for the biotechnology industry
- Applications
- for vehicles, suction, metering, mobile, for lubrication units, for machinery, for centralized lubrication systems, micro-dispensing, filling, lubrication, conveying, for industrial applications, for low-pressure applications, for refrigeration, for lubrication systems, for cooling systems
- Material
- stainless steel, metal, hard metal
- Fluid specification
- for low-viscosity fluids, for mineral oil, dye, for fluids with lubricating properties, for refrigerant fluids, for AdBlue
- Voltage
- DC 24 V
- Protection level
- abrasion-resistant, hermetic
- Other characteristics
- adjustable, compact, with integrated controller, small, low-pressure, for fluids, micro, small-size, programmable, for low flow rates, integrated-drive, low-capacity
- Flow
Min.: 0.048 l/min
(0.01268 us gal/min)Max.: 0.288 l/min
(0.07608 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 15 bar
(217.557 psi)- Power
21 W
(0.03 hp)- Fluid temperature
Min.: -15 °C
(5 °F)Max.: 60 °C
(140 °F)
Description

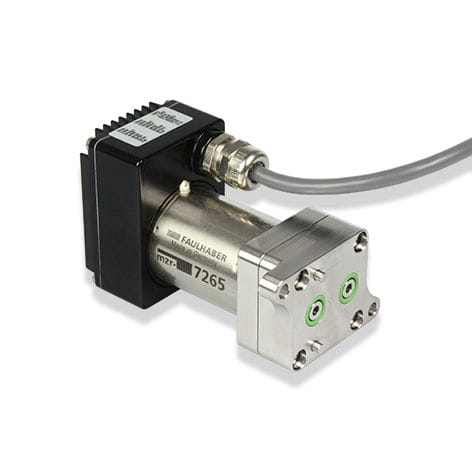

Compact hermetic pump for continuous dosage
The micro annular gear pump mzr-7265 is suitable for handling crystallizing, oxygen or moisture sensitive liquids, because the pump has no shaft seal. This functionality is made possible thanks to a liquid-separating cup surrounding the magnetic drive. The compact dimension of this magnetic hermetic pump is achieved by a completely new product design and optimal matching with an integrated speed and position controller. The pump has a length of 84 mm and a weight of 580 g. The pump handles flow rates from 0,048 to 288 ml/min with a high precision and low pulsation. The pump is suitable for applications where an avoidance of leakage and a long service life as well as low energy consumption are important requirements. The pump is supplied with a terminal box for speed control and LED status indicator.
Advantages
Hermetic pump design
pump without shaft seal
Magnetic drive
inner magnet system driven by rotating magnetic field
Integrated motion controller
programmable motion controller for speed and position control with RS-232 interface
Compact dimensions
length 84 mm
