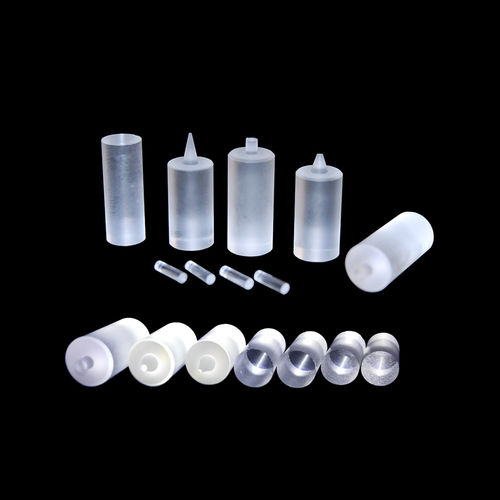

Rod microlens

BK7optical glasssapphire

Rod lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod will be focused into a line. These components are used in a variety of laser and imaging applications. Specifications: Material BK7 grade A optical glass, UV grade Fused Silica, Sapphire,K9,ZF52 etc. Diameter Tolerance +0.00/-0.05mm (Standard), up to +0.00/-0.002mm such as 1.0~10.0mm Cylindrical Surface Figure 2 @632.8nm (Standard), up to /4 @632.8nm Surface Quality 40-20 S/D (Standard), up to 10-5 S/D Protective Bevel Focuses a line >Makes the lens ideal for 360⁰ illumination >Laser and imaging systems Applications >Compact Fiberoptical Components >Laser Systems >Micro Optical Devices >Optical Assemblies (Gradienter)
