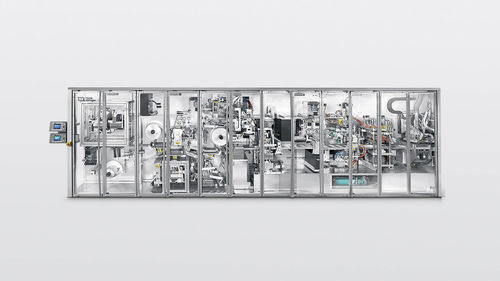

Automatic packaging machine PFM-KV

blistermedicalfor the pharmaceutical industry

The PFM-KV is designed to package medical products into aluminum blisters. A chain conveyor transports the aluminum foil inside the blister machine. The machine first forms blisters from the foil and then fills the cavities with the medical products. For sterile packaging, the blisters can receive a sterilization-grade window using a Tyvek® cover film during the sealing process. The packaged products are fed individually to the sterilization process after cutting/punching. Benefits • Extremely high output (HS model) • Precise foil guidance with the conveyor foil transport • Fast format change • A variety of print systems can be fully integrated for bottom and cover foil • Capable of integrating a large variety of camera systems • Fully automatic feeding systems for various medical products Final products • Surgical suture material • Catheters • and much more Machine features Forming A variety of methods are available for the forming process. In addition to thermoforming, deep drawing or vacuum forming is applied. These processes are integrated into the system platforms developed by Harro Höfliger with the product-specific function stations. Web handling Perfect web handling: Technical highly sensible components regulate feeding, transport and ejection of materials within the machine. Dancers, web edge controls, and winding and rewinding devices are the basic technologies for producing items such as patches. Sealing Sealing is one of the central processes when connecting several product layers. We apply several technologies for this process.
