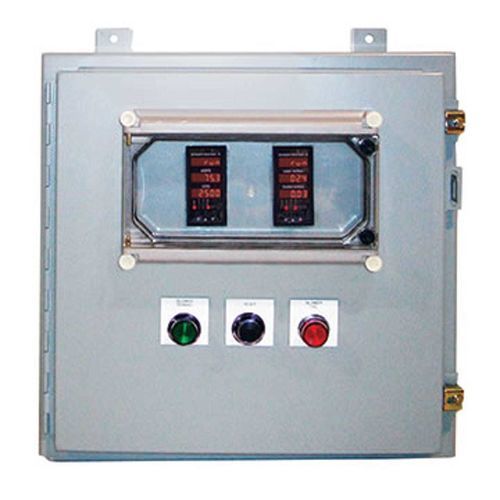

Three-phase electric energy meter SmartMeter II

panel-mountdigitaldigital output

Overview
Designed to protect single blowers in constant speed applications, the Smartmeter based panels include up to three digital displays, two inputs, and four alarm outputs. SmartMeter II can be configured for a variety of blower protection applications for a more cost-effective option.

Common Features Include:

• An operator adjustable start delay set point to prevent nuisance shutdown on startup of the blower
• Coast down timer to prevent the blower from automatically restarting after shutdown or power failure
• Optional 4-20 mA output card are available for some models to re-transmit one or two inputs

The Digital Based Controller Monitors:

• Surge/Overload
• Blower Bearing Temperatures
• Inlet/Outlet Air Temperatures
• Blower Bearing Vibrations
• Motor Bearing Vibrations
• Pressure
• Protection for Single Blower Constant Speed Applications

Caractéristiques / spécifications techniques

• Model: SmartMeter II
• Displays: Up to three digital displays
• Inputs: Two inputs
• Alarm outputs: Four alarm outputs
• Adjustable start delay set point (operator adjustable)
• Coast down timer to prevent automatic restart after shutdown or power failure
• Optional 4-20 mA output card available for some models (to re-transmit one or two inputs)
• Monitored parameters: surge/overload, blower bearing temperatures, inlet/outlet air temperatures, blower bearing vibrations, motor bearing vibrations, pressure
• Designed for protection of single blower constant speed applications
