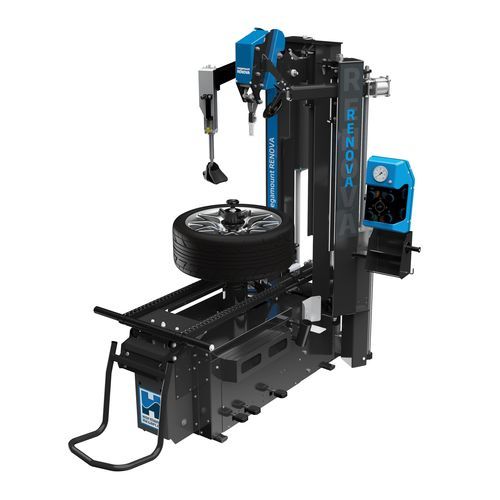

Car tyre changer megamount Renova

leverlessverticalelectric

Short description
The tyre changer with an easy dynamic leverless, contact-free system for assembly and disassembly; clamping range 10"–30" and max wheel diameter 1200 mm.

Description
PATENTED contact-free easy dynamic leverless system
Renova employs an innovative leverless assembly/disassembly concept combining two different tools with axial and radial movements to simplify workshop operations. The lever tool lowers to engage the bead, extracts it from the rim with high precision due to the special claw shape, and holds it locked until bead-breaking is complete. A dedicated button lowers the mounting device which, through a linear movement, aligns with the dismounting lever and acts as a guide to ease installation of the first bead. All operations are performed without exerting pressure that could damage the tyre and avoiding any contact with the rim (contact-free), reducing the risk of rim damage and tyre stress.

Technical data (table)
Clamping range: 10"–30"
Max. wheel diameter: 1200 mm / 47"
Max. wheel width: 380 mm / 15"
Motor: 1.5 kW – inverter
Max. torque: 1200 Nm
Speed of rotation: 0–16 rpm (1ph inverter)
Bead unseating force on shovel (10 bar): 12000 N
Operating pressure (recommended): 8-10 bar
Noise level: < 70 ± 3 dB (A)
Net weight: 370 kg

Features / technical specifications

• Clamping range: 10"–30"
• Max. wheel diameter: 1200 mm / 47"
• Max. wheel width: 380 mm / 15"
• Motor: 1.5 kW – inverter
• Max. torque: 1200 Nm
• Speed of rotation: 0–16 rpm (1ph inverter)
• Bead unseating force on shovel (10 bar): 12000 N
• Operating pressure (recommended): 8-10 bar
• Noise level: < 70 ± 3 dB (A)
• Net weight: 370 kg
