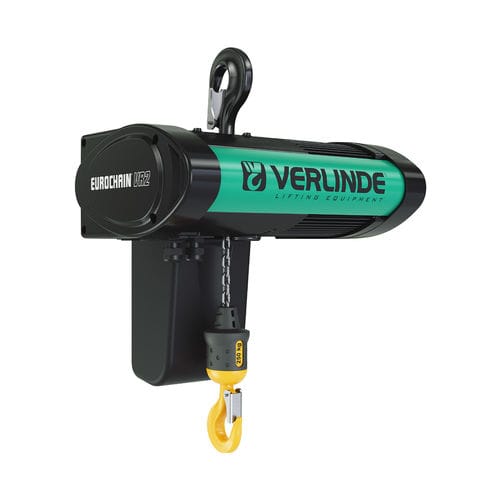

Electric chain hoist EUROCHAIN VR series

explosion-proofvariable-speed2-speed

The Eurochain VR electric chain hoist showcases complete innovation and have been developed with new materials and new operating concepts in mind to deliver a robust, flexible lifting solution for loads of 63kg – 10,000kg. The VR is also available in an ATEX version for use in Zone 22: Hazardous Dust Environments. This electric chain hoist features simplified maintenance operations and improved lifting speeds, that delivers increased productivity and greater performance when compared with previous generations of electric chain hoists. • - With an extensive range of lifting speeds available • - Simplified maintenance operations reduce downtime • - Broader range of lifting capacities • - The clutch position ensures the load is held by the brake regardless of the machines daily operating conditions Technical Information The Eurochain VR electric chain hoist is designed to provide users with the maximum level of safety. It is delivered with the following equipment as standard: • - New lifting wheel concept with intermediate teeth for perfect chain drive • - Torque limiter • - Disk brake • - 3m standard lifting height • - Dual-speed lifting • - Fitted with upper and lower electric limit switches • - IP55 lifting and travelling motor • - Thermal protection on lifting motor • - Tropicalised protection (lifting and travel – 90-95%) • - Galvanised load chain • - Available in an ATEX version for use in Zone 22: Hazardous Dust Environments • - 2-buttons unit on fixed hoist or push travel trolley • - 4-buttons unit on hoist coupled to electric travel trolley • - Emergency stop button • - 400V/3Ph/50Hz or 415V/3Ph/50 Hz or 460V/3 Ph/60 Hz power supply • - Low voltage 48V control
