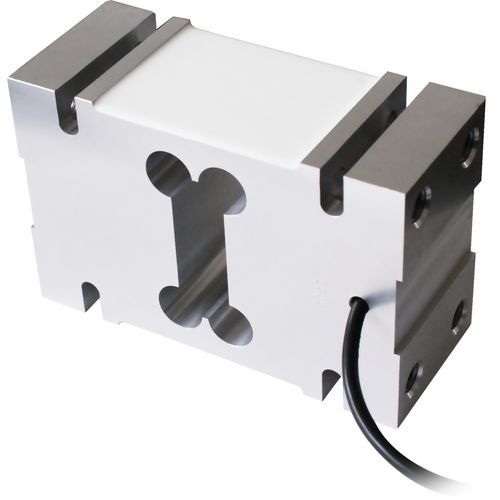

Single-point load cell HL6F-D
tension/compressionanalogweighing

single-point load cell
single-point load cell
Add to favorites
Compare this product

Go to the HOLI website for more information

Characteristics

Type
tension/compression
Form
single-point
Output signal
analog
Applications
weighing
Other characteristics
precision
Rated load

1,000 kg, 2,000 kg
(2,204.62 lb, 4,409.25 lb)

Description

Precision - C3 Maximum Division - Nmax - 3000 Minimum Division - Vmin - Emax/7000 Composition Error - (%FS) - ≤±0.020 Creep Deformation - (%FS/30min) - ≤±0.0167 The influence of temperature on the output sensitivity - (%FS/10℃) - ≤±0.0175 The influence of temperature on the zero output - (%FS/10℃) - ≤±0.020 Rated Output - (MV/V) - 2.0±0.2 Input impedance - (Ω) - 406±6 Output impedance - (Ω) - 350+3 Insulation Resistance - (MΩ) - ≥5000(50VDC) Zero output - (%FS) - 2 Temperature compensation range - (℃) - -10~+40 Working temperature range - (℃) - -35~+65 Recommend excitation voltage - (V) - 5~12(DC) Maximum excitation voltage - (V) - 18(DC) Safety overload range - (%FS) - 150 Limit overloadrange (%FS) - 300 Position Error - 0.02%/100mm
