Profiled gasket 7400 series

polyurethanefor doorsEMI shielding

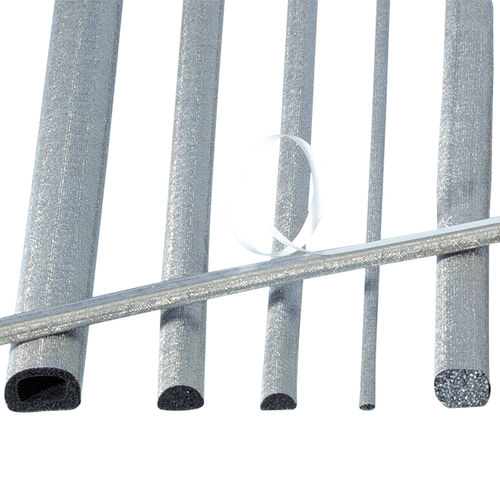

Ultra Soft Shield 7400 series Ultra soft EMI shielding gasket for doors, panels and lids. Very low closure force to prevent deflection of doors, lids and panels. Ultra Soft Shield 7400 series is a HF shielding gasket with high shielding performance and extremely low closure force. This prevents deflection of doors/parts, which improves shielding effectiveness. It is very effective in combination with stainless steel and metals. The core consists of a high-grade polyurethane foam core with a maximum compression of 80%, which distinguishes Ultra Soft Shield 7400 from other commonly used shielding materials. Ultra Soft Shield 7400 is covered with a highly conductive and wear & tear resistant metallized fabric. Different foam cores and conductive foils and fabrics are available for special application (See options below). Benefits Gasket can be compressed up to 80% Very low closure force Very high electrical conductivity High shielding performance Roll length of 1 until 1000 meters. (Depending on width and height of the EMI gasket) Easy to fit with self-adhesive High abrasion resistance Can be cut wit a pair of scissors Because the Ultra Soft Shield 7400 series is so soft, it is easy to bend around corners
