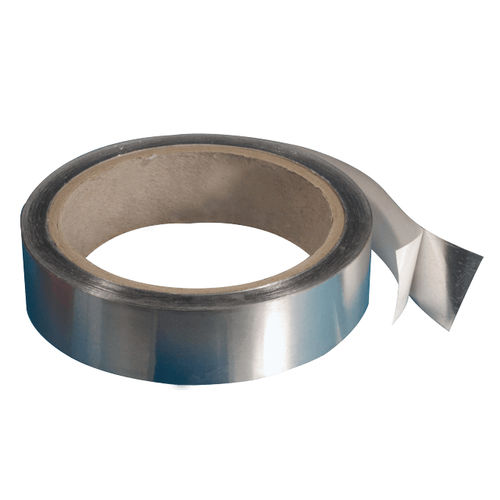

EMI shielding tape 4700 series

anti-staticaluminum foilself-adhesive

Many EMI problems can be solved easily by the use of Amucor foil or tape, a commonly used material. Amucor foil and tape can be produced with or without (conductive) self-adhesive and an optional insulation layer. Amucor tape can be cut to any width starting at 3 mm and can be delivered from stock. The most commonly used width is 25 mm; the standard roll length is 16.5 meters. If coverage of large surfaces is needed, it is usually best to use tape with a conductive self-adhesive in combination with foil. This solution is much cheaper than only using tape. Amucor foil can also be delivered as die-cut, according to the customer's drawing, on a strip or in pieces (stickers), with optional self-adhesive. Applications • EMI shielding of plastic enclosure parts (EMI/RFI-shielding tape/gasket) • Shielding all non-conductive materials • Ground plane • Anti-static floor (ESD floor) • The electrical connection between surfaces (sheets/foils) • Die-cuts • Shielding in housings and Faraday cages • Temporary shielding during tests • Mounting transparent foils, windows for EMI/RFI shielding • Cable shielding (wrapped around the cable) • Temporary shielding during emission and immunity tests Options • Fire-retardant version • With (conductive) self-adhesive backing • With insulation layer • Die-cutting to any shape according to the CAD drawing
