Class gPV fuse H0FF
DChigh-currenthigh-voltage

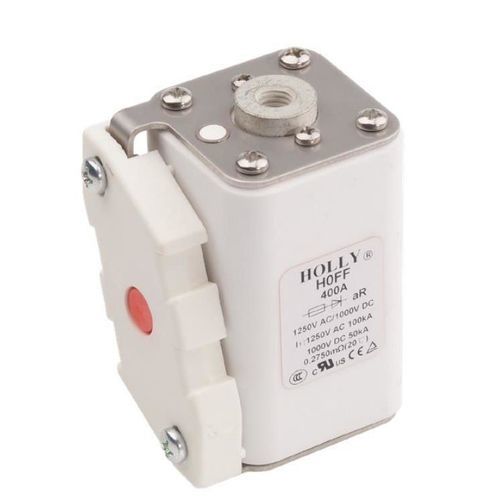

Class gPV fuse - H0FF - Holly/Hollyfuse/Hollyland - DC / high-current / high-voltage
Class gPV fuse - H0FF - Holly/Hollyfuse/Hollyland - DC / high-current / high-voltage
Add to favorites
Compare this product
Go to the Holly/Hollyfuse/Hollyland website for more information

Characteristics

Class
Class gPV
Other characteristics
DC, high-voltage, high-current
Applications
for photovoltaic applications
Amperage

Min.: 32 A

Max.: 400 A

VAC

1,250 V

VDC

1,000 V

Description

Product overview
H0FF is a photovoltaic fuse designed to protect PV string circuits and DC networks in solar power installations. It provides overcurrent protection compliant with international PV fuse standards.

Key information
  • Rated current: 32A–400A
  • Rated voltage: 1250V AC / 1000V DC
  • Reference standards: IEC 60269-4, GB/T 13539.4, UL 248-13
  • Safety certifications: CCC, cURus, TUV, CE


Applications
  • Protection of photovoltaic (PV) string circuits
  • Overcurrent protection in DC combiner boxes and PV inverters
  • Use in industrial and commercial solar installations


Documents
Datasheet available in PDF format. Certification documents available on request.

Technical specifications
  • Model: H0FF
  • Rated current: 32A–400A
  • Rated voltage: 1250V AC / 1000V DC
  • Reference standard: IEC 60269-4
  • Reference standard: GB/T 13539.4
  • Reference standard: UL 248-13
  • Safety certification: CCC
  • Safety certification: cURus
  • Safety certification: TUV
  • Safety certification: CE
