High-current fuse H4FE

for transformersfor distribution switchgearfor electric motors

Product

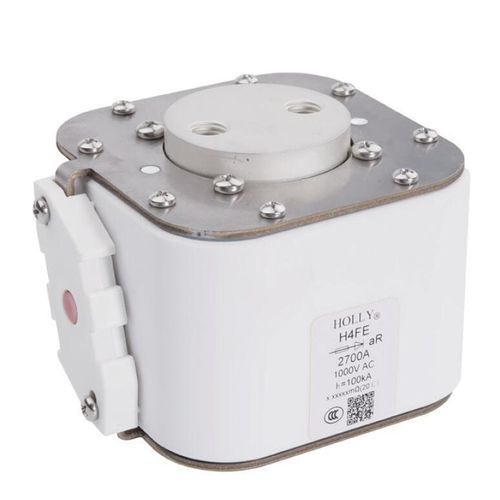

High-current fuse H4FE

Overview
The H4FE is a high-current fuse designed for protection of electrical distribution and power equipment up to 1000 V AC. It is available in rated currents from 1000 A to 2700 A and complies with international reference standards. The product holds CCC safety certification.

Applications

• Protection of industrial switchgear and busbars
• Transformer and motor protection in distribution networks
• Cable and feeder protection in high-current installations

Technical specifications

• Rated current: 1000 A–2700 A
• Rated voltage: 1000 V AC
• Reference standards: UL 248-13; IEC 60269-4; GB/T13539.4
• Safety certification: CCC

Ordering information

• Model: H4FE
• Available ratings: 1000 A, 1250 A, 1600 A, 2000 A, 2500 A, 2700 A (examples of common ratings)
• Voltage rating: 1000 V AC
