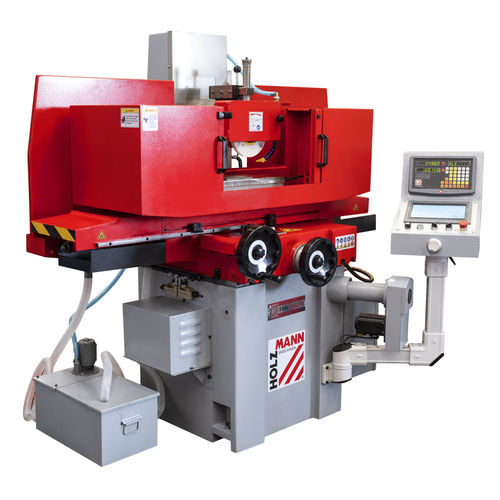

Surface grinding machine FSM25AUTO_400V

for workpiecesautomatic2-axis

highlights Surface grinding machine with automatic cycle function (pre-grinding, fine grinding, spark-out) Machine base made of solid cast iron for maximum rigidity and stability electro-magnetic clamping chuck (500 x 250mm) for fixing workpieces included (magnetisation / demagnetisation via switch on control panel) Table slideway as V-flat in longitudinal direction and double-V in transverse direction Equipped with coolant supply equipment (pump, tank, tubing) Coolant pump: 40 W 12l/min device for dressing directly on the machine for resharpening of the grinding wheel included (incl. dressing diamond) Central lubrication of all guides (automatic with time function) Grinding of workpiece up to 500 x 254 x 275 mm possible 2-axis position display (grinding stone feed and table position) hydraulic longitudinal feed adjustable via lever and change-over positions adjustable via limit switch (electric motor for pump 1.5kW) manual longitudinal adjustment possible via separate spring-loaded handwheel separate feed motor for transverse movement from the table (step width adjustable by means of potentiometer on control panel (0.1-11.2mm/rev) as well as change-over position adjustable by means of limit switch also in transverse direction) Manual transverse adjustment possible via handwheel (graduation 0.02mm/rev) Height adjustment by means of servo motor 750W (manual feed by means of handwheel on control panel with 3 steps as well as automatic in automatic cycle) max. table load 180kg
