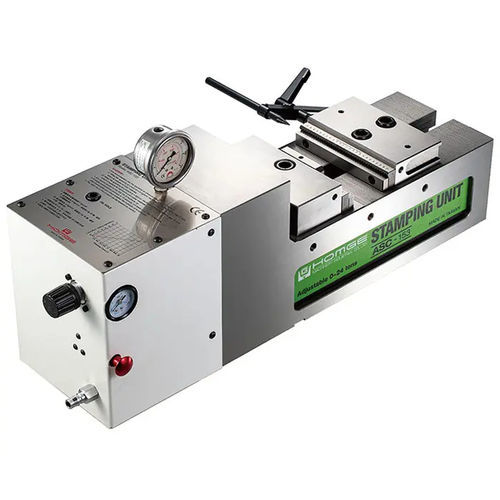

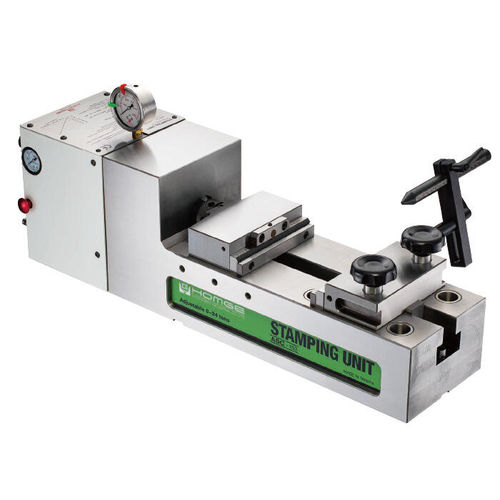

5-axis stamping unit ASC-153

Product overview
Pre-stamping unit for off-machine preparation of workpieces clamped in 5-axis vises. Creates a pre-stamped tooth profile to ensure form-fit positioning and high-grip clamping for reliable five-axis machining.

Advantages

• Off-machine preparation reduces setup time and avoids in-machine trial cuts, enabling faster changeovers and a stable production tempo.
• Form-fit teeth provide precise and repeatable positioning between workpiece and vise.
• High grip at lower clamping pressure preserves thin-wall and cosmetic parts while improving process stability.

Features

• 1. OFF-MACHINE PREP — Serrations formed off-machine; load and cut immediately, eliminating in-machine adjustments and trial cuts.
• 2. DIMENSIONAL STABILITY — Form-fit location resists vibration and shift during long runs, extending tool life and improving yield.
• 3. HIGH GRIP, LOW PRESSURE — Form-fit teeth deliver strong hold with reduced clamping force, safer for thin-wall parts.
• 4. ADJUSTABLE PRESSURE — Built-in regulator lets you fine-tune pre-bite pressure by material and contact area to balance grip and surface protection.
• 5. SPEC RANGE — Suitable for materials up to 35 HRC, part sizes 5–185 mm, and clamping force up to 24 t.
• 6. ECOSYSTEM INTEGRATION — Compatible with HOMGE 5-axis vises; pairs with zero-point plates to complete the fixturing system.

Specifications
Unit: mm
Model | A | B | C | D | E | F | G | H | I | J | K | Stamping Force | Safety Range | Weight (kg)
ASC-153 | 220 | 155.5 | 112.5 | 706 | 741 | 175 | 90 | 15 | 10 | 185.5 | 152.5 | 0-24000kg | 10mm | 103

Technical specifications

• Model: ASC-153
• A: 220 mm
• B: 155.5 mm
• C: 112.5 mm
• D: 706 mm
• E: 741 mm
• F: 175 mm
• G: 90 mm
• H: 15 mm
• I: 10 mm
• J: 185.5 mm
• K: 152.5 mm
• Stamping force: 0–24000 kg
• Safety range: 10 mm
• Weight: 103 kg
• Recommended material hardness: ≤ 35 HRC
• Recommended part size: 5–185 mm
• Adjustable pre-bite pressure via built-in regulator
