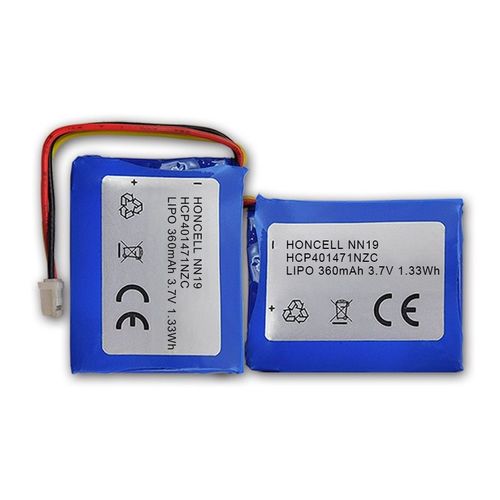

Lithium-polymer battery HCP series
rectangular3 Vemergency power supply

lithium-polymer battery
lithium-polymer battery
Add to favorites
Compare this product


Characteristics

Type
lithium-polymer
Configuration
rectangular
Voltage
3 V
Applications
emergency power supply
Standard
IEC, UL, CE
Load capacity

Min.: 0.15 Ah

Max.: 1 Ah

Length / diameter

Min.: 12.5 mm (0.5 in)

Max.: 120 mm (4.7 in)

Height

Min.: 2.7 mm (0.1 in)

Max.: 10.5 mm (0.4 in)

Width

Min.: 8.5 mm (0.3 in)

Max.: 60 mm (2.4 in)

Weight

Min.: 0.5 g (0.02 oz)

Max.: 42.1 g (1.49 oz)

Description

Small Capacity Lipo Pouch Cells 3.7V, 15-1,000mAh Honcell small capacity range (3.7V, 15-1,000mAh) Li-polymer cells are used to power portable devices and equipments like wearables and or provide back up power. Cells can be combined and assembled in series to increase voltage or parallel to increase capacity by using several identical cells. Thermistors or thermal fuses and gas gauging can be added if necessary, but Printed Circuit Module (PCM) is highly recommended for safety protection. Connection can be tabs soldering directly, stripped lead wires and or with a specified genuine connector. Model Selection Guide 1: Width (W) and length (L) are fixed for each cell size but thickness (T) is variable, which can increase or decrease cell capacity for the same fixed width and length Lipo cell. 2: Due to site space limitations, if you don't see any proper width and length here below or not even a closer one, please contact us. 3: Adding a PCM on the cell will increase approx. 1.5-2.0mm to the overall length, and 0.5mm to the thickness after assembly. 4: The following parameters are theoretical data, intended for reference only. Please contact our sales staff for details.
