Plastic sheet thermoforming machine DX-750for thermoplastic drinking cup productionautomaticindustrial
Add to favorites
Compare this product
Characteristics
- Type
- for plastic sheets
- Applications
- for thermoplastic drinking cup production
- Operational mode
- automatic
- Other characteristics
- industrial
- Film width
750 mm
(30 in)- Maximum depth of draw
180 mm
(7 in)
Description

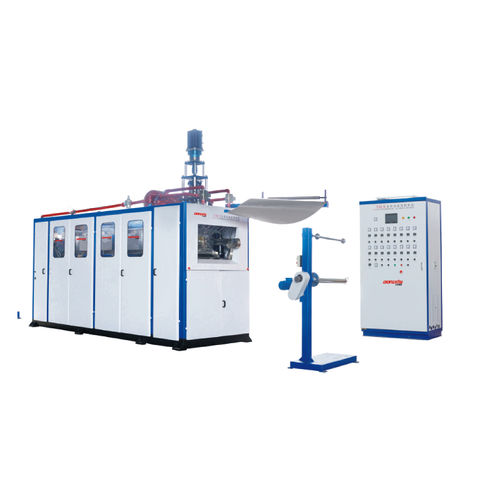

Fully automatic plastic cup thermoforming machine
First, the equipment name:
plastic sheet pneumatic thermoforming machine
Second, the model DX-750
Third, the production line composition
1. Plastic sheet pneumatic thermoforming machine main body
2, waste side winding machine
3, industrial computer control cabinet
4, automatic release rack
Fourth, the main technical parameters
1
Suitable materials
PP、PS、PET、PVC、ABS、PLA
2
Suitable Thickness
0.3-2.0mm
3
SUitable width
750mm
4
Max.cutting dimension (mm)
750×520mm
5
Max. negative depth (mm)
≤180mm
6
Working Effective
≤12 cylce/minute
7
Heating Power
100kw
8
Main Motor Power
15kw
9
Feeding Motor
4kw
10
Motor Voltage
Three phase 380V
11
Air Pressure
0.6-0.8Mpa
12
Air Consumption
4000～5000 L/min
13
Water Consumption
40-50L/min
14
Machine Weight
6000kg
