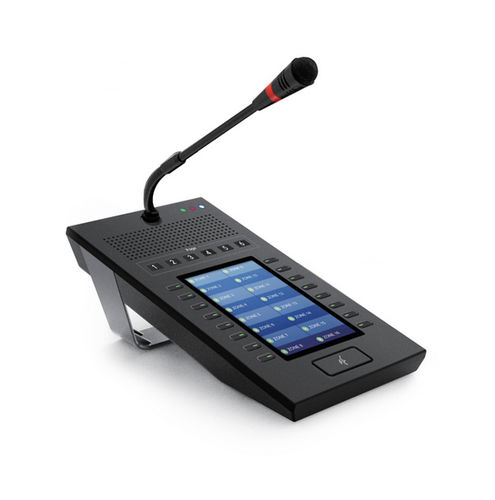

PoE call station KNPA800mini

Ethernetfor public address systemwith indicator lights

Product Overview
Paging Microphone / PA Call Station. Call Station with a gooseneck microphone designed for professional public address (PA) applications.

Key Functional Features & Benefits

• Purpose-Built Design: Exclusively engineered for professional PA applications; EN 54-16 and ISO 7240-16 certified for safety compliance; CE marked and RoHS compliant; designed for 24x7 round-the-clock operation with energy-saving features during standby mode.
• User-Friendly Interface: 16 (8*2) free-programmable buttons; 3.5-inch TFT display; clear status indicators for power and communication; push-to-talk activation with visual confirmation; one button with security cover for emergency function; equipment supports 96 DSS keys (16*6 pages); integrated time-synchronization capability with GPS or local observatory time servers.
• Superior Audio Management: Professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume control; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator with single-tone, 2-tone and 4-tone options; high-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥ 60 dB.
• Flexible Broadcasting Capabilities: Selective zone, group-zone, and all-call paging options; pre-recorded message distribution with zone targeting; live announcements with exceptional clarity; configurable emergency alert buzzer with adjustable volume and instant override functions; advanced scheduling options for automated announcements (specific dates and repeated daily/weekly/monthly); priority-based audio routing with emergency override functionality.
• Enterprise-Grade Reliability: Power over Ethernet (PoE) operation for simplified installation; dual Ethernet ports for network redundancy; no external power supply required; supports remote monitoring with visual and aural output level indicators; extended connectivity options with CAT5 cable for distances up to 100 m and Fiber + Pair cable for up to 3 km.

Physical / Visual

• Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
• Material: ABS (Acrylonitrile Butadiene Styrene)

Additional Media

• Product brochure / PDF available: KNPA800mini (see product documents)

Characteristics / Technical specifications

• Model: KNPA800mini
• Dimensions: 150 x 100 x 76 mm (excluding microphone)
• Material: ABS
• Buttons: 16 (8*2) free-programmable buttons; 96 DSS keys (16*6 pages)
• Display: 3.5-inch TFT
• Microphone: Gooseneck unidirectional; adjustable sensitivity and volume
• Audio frequency response: 100 Hz - 20 kHz
• Signal-to-noise ratio: ≥ 60 dB
• Inputs: 3.5 mm jack for wireless microphone input
• Chime generator: configurable (single-tone, 2-tone, 4-tone)
• Paging modes: selective zone, group-zone, all-call, pre-recorded message distribution, live announcements
• Network: PoE operation; dual Ethernet ports for redundancy
• Cable support: CAT5 up to 100 m; Fiber + Pair up to 3 km
• Time sync: GPS or local observatory time servers
• Compliance: EN 54-16, ISO 7240-16, CE, RoHS
• Operating design: 24x7 operation with energy-saving standby features
