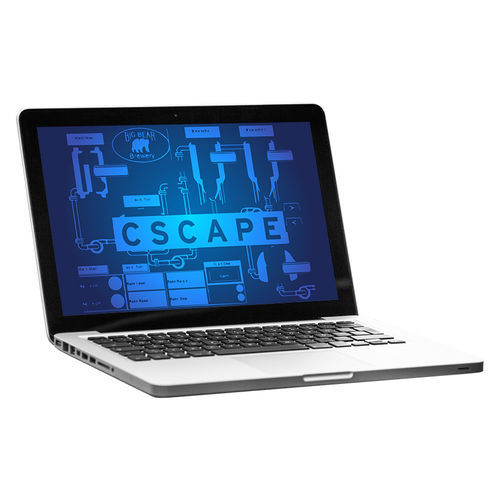

Interface software Cscape

programmingdevelopmentcontrol

Cscape Free PLC software combines graphical ladder diagram programming (based on IEC-1131) with operator interface development to completely integrate the control package. Integrated IEC languages10 Relay Ladder Logic Floating Point Maths Motion Commands Serial Read and Write Functions I/O Configuration Auto Tune PID Modem & Networking Functionality Cscape software combines graphical ladder diagram programming (based on IEC-61131) with operator interface development to completely integrate the control package. Its straightforward approach to programming combines logic with messaging and networking. Logic Cscape features a powerful IEC-61131 style free form, drag and drop ladder editor. Nearly 100 functions to choose from, including conversion, string handling, advanced math, flow control and more. IEC-61131 languages now come as standard with Cscape. Operator Interface Designed to simplify development of your Operator Interface screens while you develop your control logic. Screens can be called up from ladder logic or operate independently. Use a single set of I/O references-no duplication of effort. I/O configuration Configure all your I/O from Cscape manually or automatically. Built-in expansion and remote I/O are all handled in a straight-forward manner.
