Programming software Alufix expert
simulationdesigntraining

programming software
programming software
programming software
Add to favorites
Compare this product


Characteristics

Functions
programming, simulation, design, training
Applications
for CAD systems
Type
3D
Other characteristics
AutoCAD, NX, CATIA V5

Description

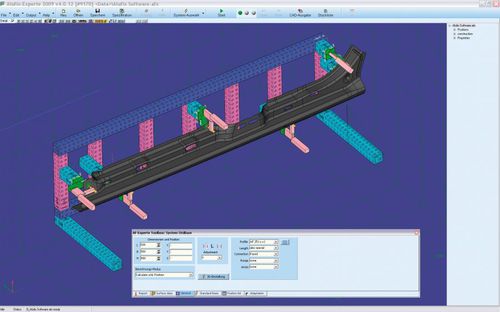

ALUFIX software from Witte: Successful programmes for design The Alufix Expert 3D design software and FIXMES parts library for CAD systems provide two powerful tools for the effective use of modular ALUFIX fixturing systems Alufix expert Alufix Expert supports design of fixtures with associated parts lists, making users completely independent of costly 3D CAD systems. The intelligent software calculates and recommends complete design solutions and variants. In addition, workpiece data in all standard formats (Step, IGES) can be imported for checking and picking surface points and vectors. The design data calculated with Alufix Expert can be exported in IGES, STL or VRML format (for example for offline programming of coordinate measuring machines) as well as with a macro and the respective component library in Catia V5, NX and Autocad. In addition, customer-specific component data can easily be read via all common CAD data formats.
