Air separator Ventoplex C

flowparticleclassifier

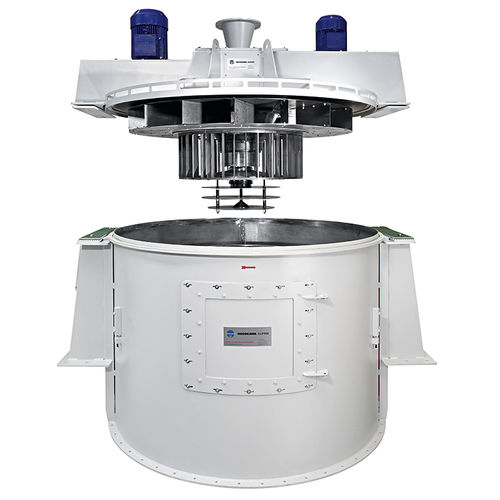

Circuit-air classifier with high specific fines yield Fineness range approx. d97 = 24 µm to 200 µm Low specific energy requirement Low-wear design Stepless fineness adjustment during operation Optimum accessibility for inspection and maintenance The Ventoplex C is a circuit-air classifier. In contrast to the former Ventoplex B with central drive, the new C design has a separately driven classifying wheel. In the new machine, the fan and classifying wheel are coaxially arranged and are driven by means of two separate hollow shafts. This makes it possible for the user to set different speeds and thus permits a significant extension of the fineness range from currently 24 µm to 200 µm. The product is fed to the centre of the classifier head via a hollow shaft, from which the material falls onto a centrifugal plate underneath the classifying wheel. The centrifugal plate distributes the feed material uniformly in the classifying chamber. Coarse particles fall against the upward flow of classifying air to the bottom, collect in the coarse material cone and are discharged through the side of the machine via a gravity chute. Fine particles in the feed material become entrained in the upward flow of classifying air and enter the classifying wheel along with the classifying air. The particles in the classifying wheel are classified by the two competing forces, namely centrifugal force and flow force. Coarse particles are rejected by the centrifugal force, whereas for the fine particles, the drag force of the air flow predominates, allowing the particles to pass through the classifying wheel.
