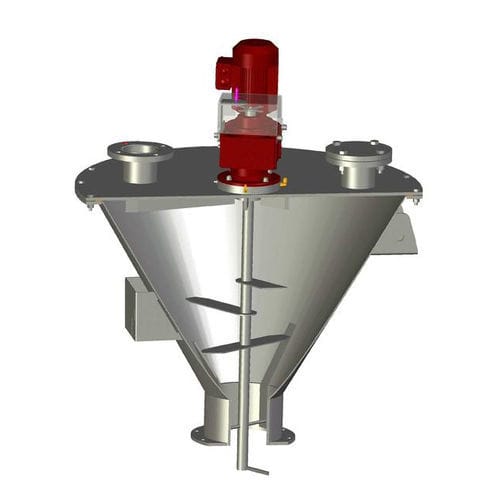

Dynamic agitator BAR series
solidverticaltop-loading

dynamic agitator
dynamic agitator
dynamic agitator
dynamic agitator
Add to favorites
Compare this product


Characteristics

Technology
dynamic
Product type
solid
Configuration
vertical
Loading
top-loading
Applications
for bulk materials
Other characteristics
stainless steel, ATEX, steel, high precision, rotary, conical, metering
Engine power

370 W (0.5 hp)

Empty weight

250 kg, 300 kg, 350 kg, 400 kg (551.2 lb)

Description

Homogenising and discharge, better dosing accuracy, optimal adaption of the agitator geometry to the product characteristics. • No segregation • Perfect mass flow without dead zones • Complete emptying • No bridging • Improved metering accuracy due to constant filling of the metering equipment • Homogeneous bulk solid • Agitator geometry has been optimally adapted to the product properties, which ensures versatility and operational safety • Low maintenance • Energy-saving and gentle product handling due to slow rotary movement The mechanical movement exerts relative forces on particles and loosens or disintegrates the bonding mechanisms. As a result, the bulk solid becomes capable of flowing. The structural design of agitator elements depends on the properties of bulk solids. Permissible operating pressure: atmospheric up to 0.5 bar g Max. temperature: 200° C Max/min ambient temperature: -10 °C ≤ T ≤ 50 °C
